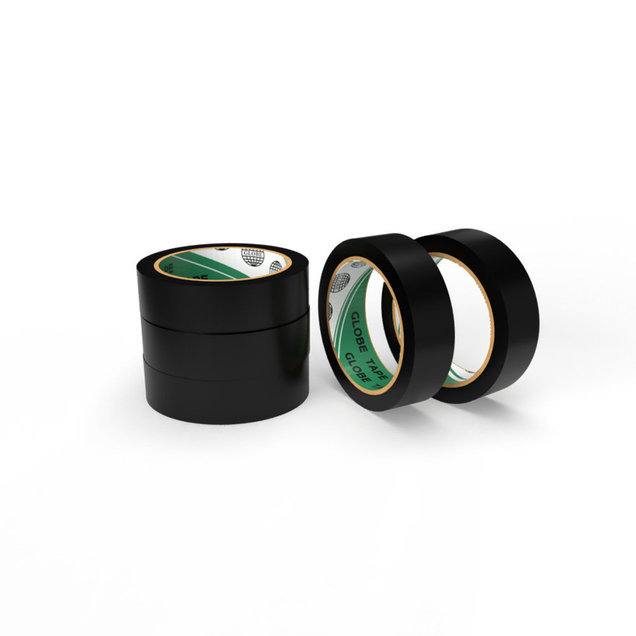

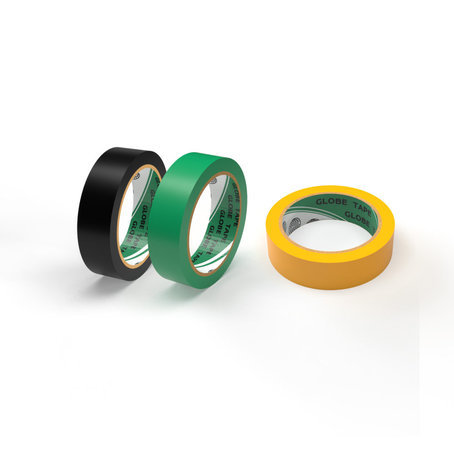

Electrical Tape- Special electrical tape for electrical insulation
-PVC electrical insulation tape is also called electrical tape because it is often used in electrical work. Our PVC insulation tapes are designed with various special PVC substrates and adhesives according to specifications and uses, and have characteristics of insulation protection, flame resistance, weather resistance, cold resistance, and high voltage resistance.
-Product thickness ranges from 0.12~0.20mm, with a variety of colors and specifications to choose from. In use, our PVC electrical tape has good elasticity and adhesion, allowing it form a tight covering, making this a great multi-purpose electrical tape.
-Our company’s PVC electrical insulating tape has not only obtained the Taiwan CNS Mark, but also United States UL, ЯU , Canadian CSA, European Union IEC 60454-3-1, Italian IMQ, German VDE, and Japanese JIS certifications. At the same time, many products comply with international environmental protection standards such as RoHS and REACH.
-Product thickness ranges from 0.12~0.20mm, with a variety of colors and specifications to choose from. In use, our PVC electrical tape has good elasticity and adhesion, allowing it form a tight covering, making this a great multi-purpose electrical tape.
-Our company’s PVC electrical insulating tape has not only obtained the Taiwan CNS Mark, but also United States UL, ЯU , Canadian CSA, European Union IEC 60454-3-1, Italian IMQ, German VDE, and Japanese JIS certifications. At the same time, many products comply with international environmental protection standards such as RoHS and REACH.
| Product Number | Color | Adhesive | Thickness | Adhesion | Tensile Strength |
Elongation % |
Breakdown Voltage KV |
Characteristics and usage | |||
| mm |
mil |
g/19mm |
oz/in |
kg/19mm |
lbs/in |
||||||
|
210/ 210E |
|
Rubber | 0.12 | 4.80 | 250 | 8.82 | 3.2 | 7.05 | 100↑ | 6↑ | Compliant with Taiwan CNS Mark |
| 0.15 | 6.00 | 250 | 8.82 | 4.0 | 8.82 | 100↑ | 7↑ | ||||
| 0.18 | 7.20 | 300 | 10.58 | 4.8 | 10.58 | 100↑ | 8↑ | ||||
| 0.20 | 8.00 | 300 | 10.58 | 5.3 | 11.68 | 100↑ | 9↑ | ||||
| 220 |
|
Rubber | 0.18 | 7.20 | 350 | 12.35 | 5.0 | 11.02 | 100↑ | 7↑ | American UL certification |
| 0.20 | 8.00 | 350 | 12.35 | 5.5 | 12.13 | 100↑ | 8↑ | ||||
| 230 |
|
Rubber | 0.18 | 7.20 | 350 | 12.35 | 5.0 | 11.02 | 100↑ | 7↑ | American UL certification, flame-resistant. |
| 0.20 | 8.00 | 350 | 12.35 | 5.5 | 12.13 | 100↑ | 7↑ | ||||
| 260 |
|
Rubber | 0.20 | 8.00 | 350 | 12.35 | 5.5 | 12.13 | 100↑ | 8↑ | American UL certification, Canada CSA certification, flame-resistant, cold-resistant (-18 ºC to 80ºC). |
| 270 |
|
Rubber | 0.20 | 8.00 | 350 | 12.35 | 5.5 | 12.13 | 100↑ | 8↑ | Canada CSA certification, flame-resistant. |
| 213 |
|
Rubber | 0.13 | 5.20 | 350 | 12.35 | 3.7 | 8.16 | 100↑ | 6↑ | Italy IMQ, Germany VDE certification. Flame-resistant, IEC60454-3-1-6. |
| 0.15 | 6.00 | 350 | 12.35 | 4.0 | 8.82 | 100↑ | 7↑ | ||||
| 0.18 | 7.20 | 350 | 12.35 | 4.8 | 10.58 | 100↑ | 8↑ | Italy IMQ certification, flame-resistant, IEC60454-3-1-6. | |||
| 2141 |
|
Rubber | 0.20 | 8.00 | 350 | 12.35 | 6.0 | 13.23 | 150↑ | 8↑ | Japan JIS approved, RoHS2 product. Cold-resistant ( -10 ºC to 80ºC). |
| 210N |
|
Rubber | 0.20 | 8.00 | 350 | 12.35 | 5.3 | 12.35 | 100↑ | 9↑ | Japan JIS approved, RoHS product. |
| L0R2 |
|
Rubber | 0.12 | 4.80 | 300 | 10.58 | 3.2 | 7.05 | 100↑ | 6↑ | Compliant with REACH |
| L3R5 |
|
Rubber | 0.15 | 6.00 | 350 | 12.35 | 4.0 | 8.82 | 100↑ | 7↑ | Compliant with REACH, flame-resistant. |
| L418 |
|
Rubber | 0.18 | 7.20 | 300 | 10.58 | 5.4 | 11.90 | 150↑ | 8↑ | Good weather resistance ( -15 ºC to 105ºC) |
